Case No.08 Curved Corten steel Structure Sculpture

Art Sculpture  No. & Name	Artwork A 08- Corten steel Sculpture
Dimension  (Height x Width x Depth)	68 meters length
	223 Foot
Material	- Surface corten steel
	- Internal Q355B carbon steel

Artwork  Surface   treatment
Mirror polishing	Lacquer coated	Matte	Electroplate	Brushed	Hairline	OTHER
						artwork

Artwork Finished Time	2009
Installation Location	Shanghai Chenshan Botanical Garden
Prize	-2011 our work award from BALI National Landscape -2012 our work award from the American Society of landscape Architects

About This Project
The curving facade sculpture of corten steel was designed by a Chinese artist and installed in Shanghai Chenshan Botanical Garden. The sculpture has a total length of 64 meters, and its surface is made of cordon steel. After rust treatment, the color is brownish-red. This material has very high strength and good corrosion resistance. Q355b carbon steel is used as the internal structure to support the surface panel, making the whole building more stable. The whole sculpture is winding on one side of the mountain. People can walk on the bridge and enjoy the beautiful scenery in the park. In 2011, corten steel arc facade won the Bali National Landscape Architecture Award and the American Association of Landscape Architects Award in 2012

3D design model

The structure design of curved corten steel stair

Fabrication in Sino factory

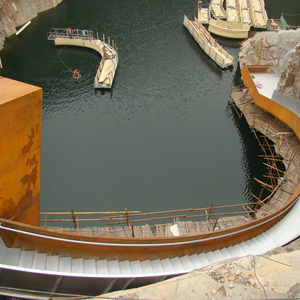

Site installation photos



Finished photos
