How to Achieve Translucent Stainless Steel Sculptures?

Edit: Sino Sculpture Group (Beijing) Ltd Date: 07-14-2025

To create a stainless steel sculpture with translucent effects, the integration of material properties, structural design, and lighting technology is essential.

Below is a step-by-step breakdown of the Methods and Technical Implementation.

1. Material Selection & Fabrication

Perforated Stainless Steel
Use laser cutting, waterjet cutting, or stamping to create intricate patterns on stainless steel plates, allowing light to pass through the voids.
Recommended Thickness: 2–5 mm (balances workability and structural integrity).
Surface Finishes: Mirror polish (for high reflectivity) or matte treatment (for diffused light).

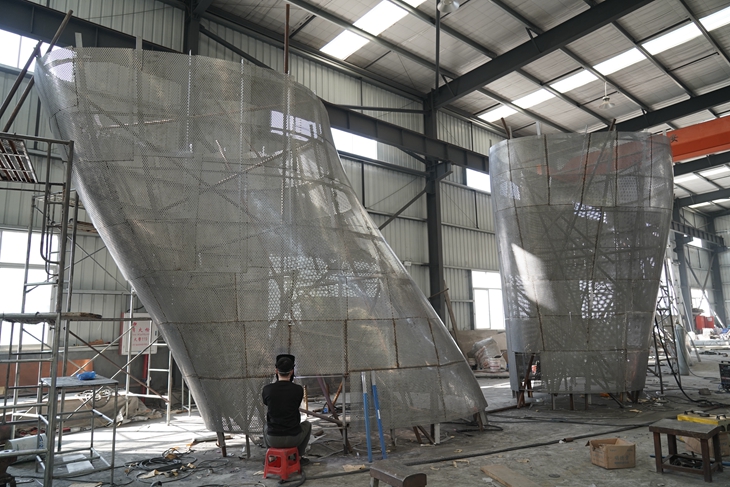

Sino Sculpture foundry Fabrication Process of the Large Victor Statue

Sino Sculpture foundry Fabrication Process of the Large Victor Statue

Mesh Stainless Steel
Employ stainless steel wire mesh or woven metal techniques to form semi-transparent structures.

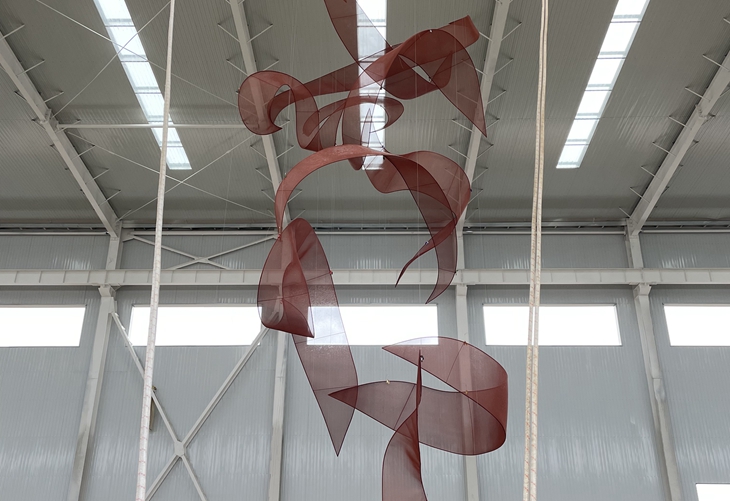

Facon Sculpture made by stainless steel wire mesh at Sino Sculpture Foundry

Facon Sculpture made by stainless steel wire mesh at Sino Sculpture Foundry

2. Light Transmission Techniques

Internal Lighting
LED Strips/Point Lights: Embedded within the sculpture’s hollow cavity to emit light through perforations.
Optical Fibers: Integrated into the structure for precise light points or linear effects.
Key Considerations: Conceal wiring and address heat dissipation (stainless steel conducts heat efficiently).

Internal LED Lighting

External Projection Lighting
Use spotlights or projectors to cast light onto the sculpture, creating dynamic shadow patterns.
Advanced Effects: Programmable lighting (e.g., DMX control) for color/illuminance variations.

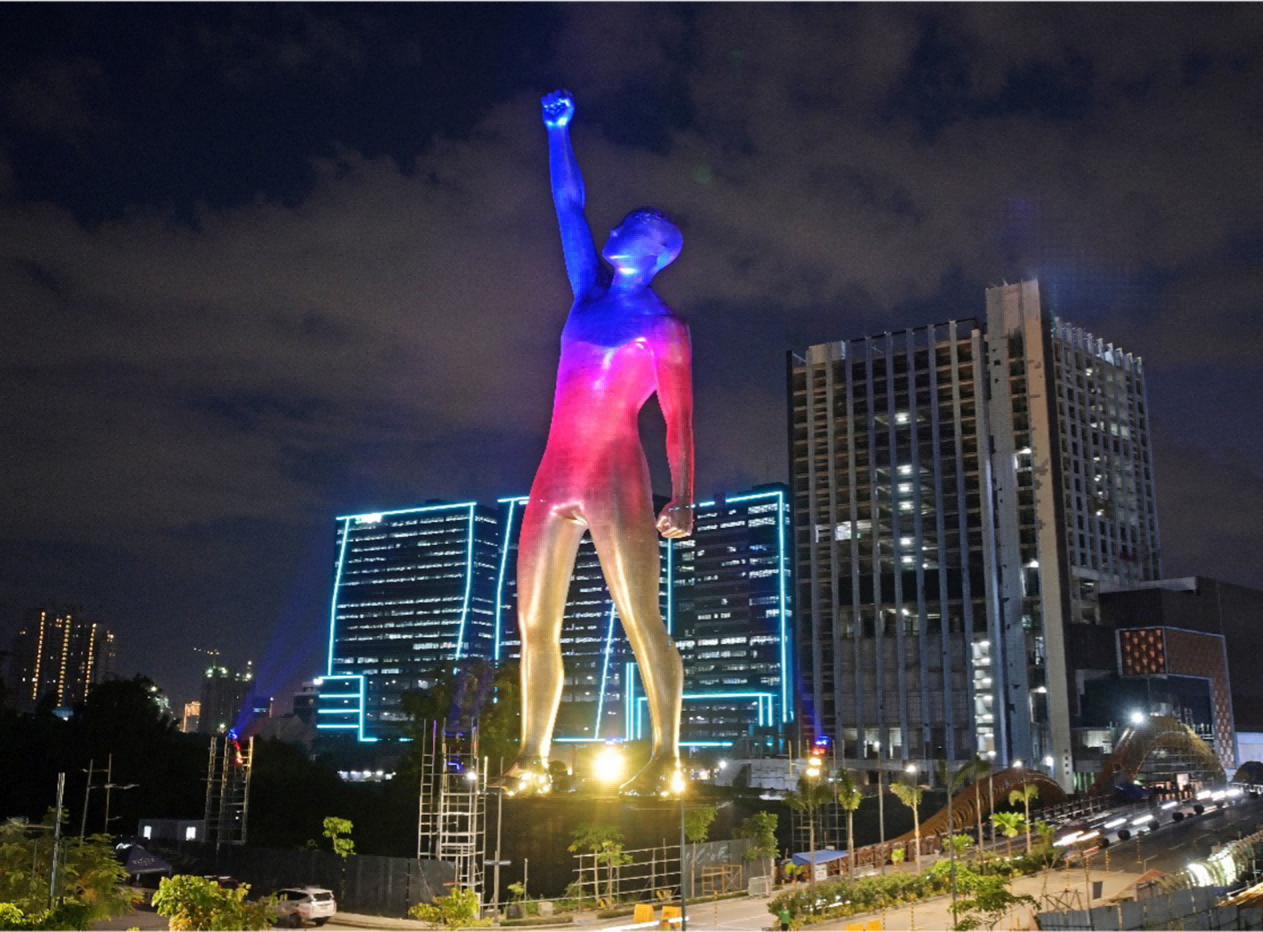

Extenal Projection Lighting Sculpture The Victor in Manila, Philippines

Extenal Projection Lighting Sculpture The Victor in Manila, Philippines

3. Structural Design Essentials

Lightweighting
For large sculptures, adopt a hollow framework with internal steel supports.

Weather Resistance
For outdoor use: Seal electrical components and opt for IP65+ rated fixtures.
Material recommendation: 316L stainless steel (corrosion-resistant).

Optical Optimization

Test perforation density and light-source distance to avoid overexposure or uneven illumination.
Optional: Add diffuser panels (e.g., acrylic backing) to soften light output.

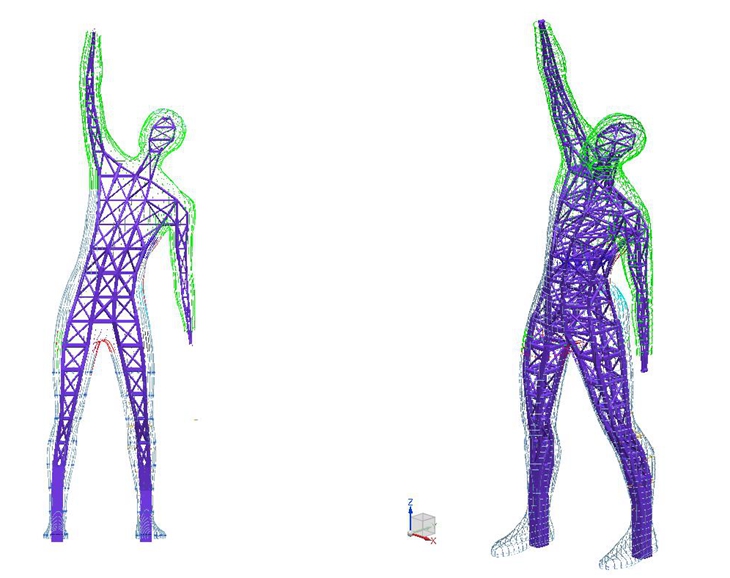

Internal Steel Structure design for the Victor statue

Internal Steel Structure design for the Victor statue

4. Artistic Enhancements

Interactive Elements
Incorporate sensors (motion/sound-activated) for responsive lighting.

Color Control
RGB LEDs or colored filters for customizable hues.

Reflective Effects
Combine mirror-finished steel with translucent sections for layered光影 (light-shadow) interplay.

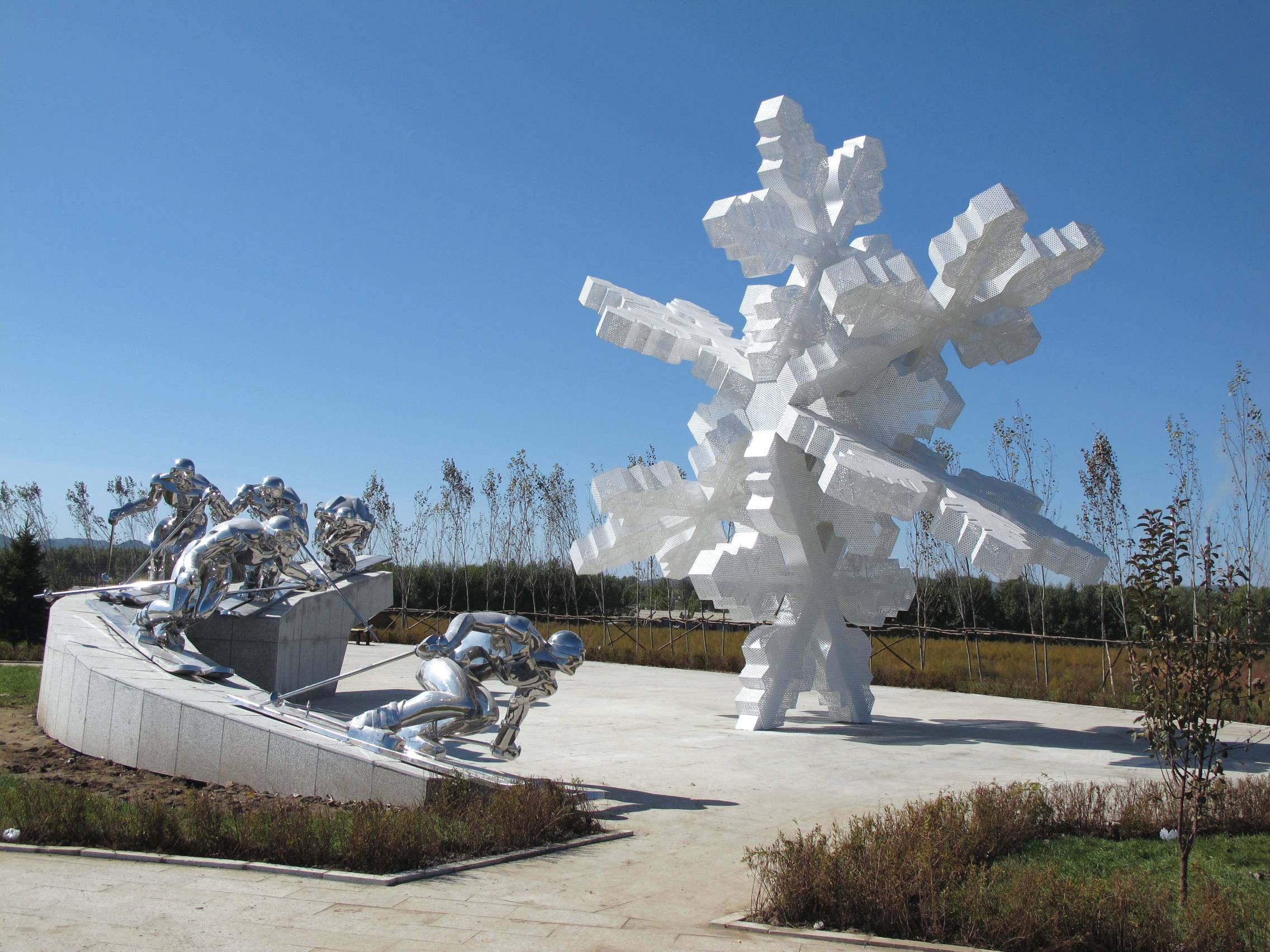

Perforated Steel Snowflake Sculpture made by Sino Sculpture Foundry

Perforated Steel Snowflake Sculpture made by Sino Sculpture Foundry

5. Production Workflow

A. 3D Modeling: Simulate light effects using software like Rhino; finalize perforation patterns.
B. Prototyping: Validate light transmission and structural stability with small-scale models.
C. Fabrication: Laser-cut/weld the main structure; reserve internal channels for lighting.
D. Electrical Integration: Conceal wiring and ensure safety compliance.
E. Calibration: Fine-tune light intensity/angles for optimal visual impact.

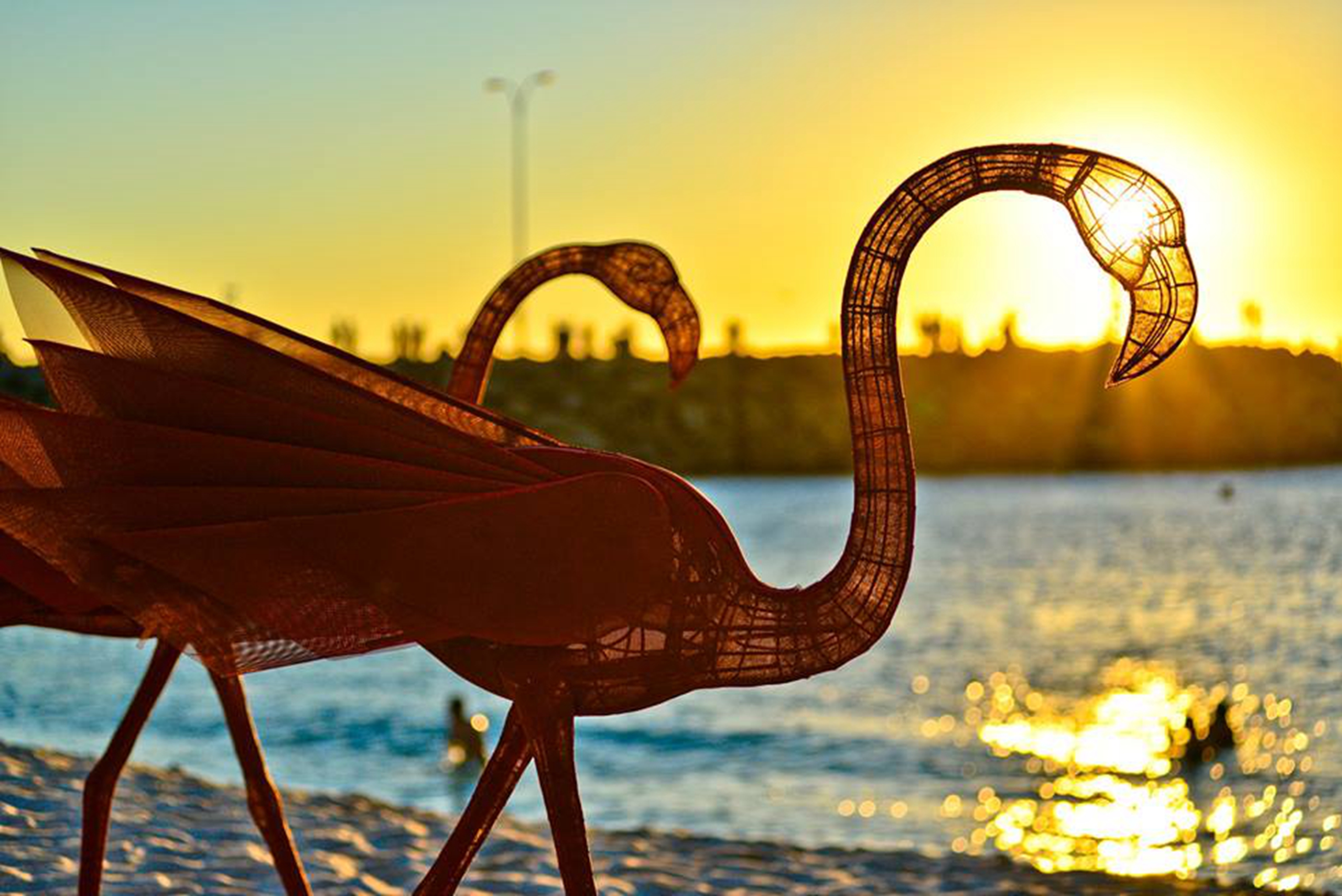

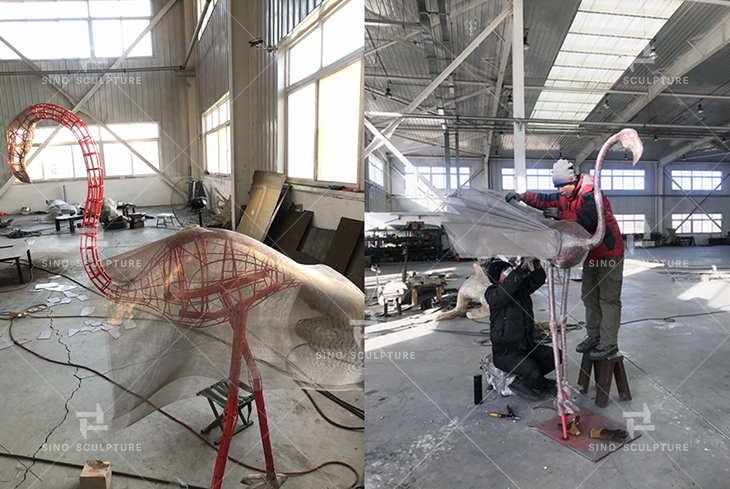

Internal Structue Design and Fabrication for the Flamingo Sculpture

Internal Structue Design and Fabrication for the Flamingo Sculpture
